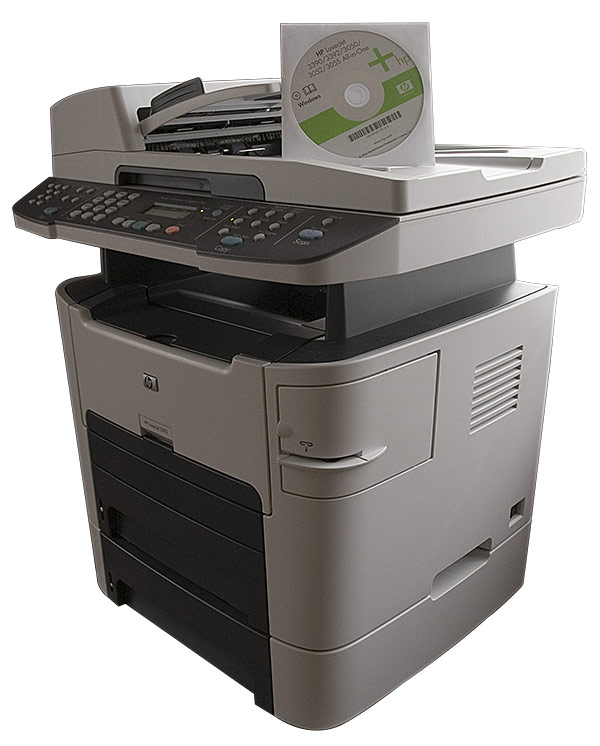

A Look at the HP3392 All In One Printer from Linux
I recently decided to invest in a new laser printer for my network of Linux
machines. The old inkjet still works, but since it takes a minute or two to
print a letter it's hardly ideal as a business printer. As I also needed a fax
machine, a photo copier and a Linux compatible scanner, the answer was quite
clearly one of those All-In-One devices that do those exact 4 jobs: laser
printer, fax, scanner and copier. Having checked the compatibility charts it
seemed that the HP 3392 was the machine to go for. It had all the features I
needed and HP claim to support Linux as a top tier platform. So I bought one.
First Impressions
First up, it's quite big. The box it arrives in is about the size of a washing
machine. Fortunately the printer itself isn't that big, but you wouldn't want it
on your desk. The 3390 variant, which doesn't have the extra tray, would
obviously be a bit shorter. Secondly, it's ugly! You can't have everything.
Setting It Up
Installation is a nightmare. You wouldn't have thought a printer could be hard
to install, would you? I started off by using its front panel to set its IP
address to something suitable for my network. That was easy enough, and once I
could ping it I stuck the CD into my Windows XP box. The software and driver
wouldn't install. There's a bug in the installer that makes it give up at a
certain point and go back to the previous screen. After 45 minutes on the phone
to HP tech support (on an 0870 number, thank you HP) they gave up and said
they'd call me back. That was 4 weeks ago, and I'm still waiting. Fortunately I
stumbled upon the solution: reset the machine to factory defaults before running
the Windows installer. For some reason, even though the machine is visible on
the network, the Windows installer won't install the drivers unless some
mysterious setting is left unchanged. I never did figure out what the magic
switch was.
Setting it up on Linux was even harder! I tried under SUSE-10.0, but it's far
from clear how you should do the setup procedure. Going via YaST's Printer
Config utility was relatively simple, and led to a functioning printer, but with
only the most basic features working. No two-sided printing, tray selection, or
anything else clever. So I moved on to CUPS, but that gets even harder. Round
and round I went trying to make CUPS understand the idea of a network printer. It
failed to communicate, even though it repeatedly said it had succeeded. So I
moved on to the mysterious 'hplip-hpijs' package, but that refused to recognise
a printer was attached anywhere and pointed me back to CUPS.
I'd like to put an explanation in this review of what I did to get it working,
but I honestly don't know. I moved onto a SUSE-10.2 machine and fiddled for
several hours until I eventually hit the right combination of CUPS and
'hplip-hpijs' from SUSE-10.2, and set up CUPS to act as a server which the
SUSE-10.0 machine could use. I got there in the end, but it was a highly
frustrating experience. HP do support the use of their products from Linux, but
don't assume they make it easy.
Thankfully the scanner was much easier to get going. The scanner driver is in
the 'hplip-hpijs' package so it just required me to add the 'hpaio' entry to the
end of the /etc/sane.d/dll.conf file. After that it just worked. That rather
impressed me: the driver must know to go out onto the network to find the
device. I certainly didn't tell it to do so! The sheet feeder works with the
scanner too, so you can just drop a document into the top, hit the button on
your screen, and the machine will pull the document in and scan it for
you. Nice.
Performance
Thankfully, after all that print setup nonsense, it worked a treat. Almost - see
below. The print it produces is nice and crisp - well up to my definition of
business standard. It happily swallows my heavy letterhead paper. It's silent
except when working (and except for about 30 secs after printing when its fan
runs quite loudly). The scanner works well, and produces output that's well up
to my requirements. I sent a fax from it (directly, not via software) and that
worked fine, but I've not yet received a fax correctly. I've tried but it's
dropped the line twice with some weird error code. I Googled for this and found
several people have experienced it. Turning off error correction seems to fix
it. I've made that config tweak, but haven't received a fax since so I don't
know if it works. Oh, and the copier, that works like a copier. Stick a handful
of paper in the top and it grabs it sheet by sheet and copies it. The front
control panel has the usual bewildering array of complex copier type operations
to enlarge, reduce, change tone, do 2 sided, etc. In so far as I've used it, it
works.
Software for Printing
The 'hplip-hpijs' package contains a utility called 'hp-toolbox', although
installing it doesn't seem to put a menu option to this tool anywhere useful. I
found it by accident. It's a python script that throws up a front end to a bunch
of other python scripts that give you basic functionality to the machine's
features.
The hp-print tool gives basic access to print functionality. It's a standalone
thing that you give a filename to. It doesn't integrate with existing software,
like word processors or web browsers, which makes it of limited use. It provides
access to the basic printer features, such as duplex (two sided) printing and
changing orientation, but it doesn't give access to anything like the number of
features the machine has and which are accessible from Windows. The Windows
print dialog (which is correctly integrated into all applications' Menu->Print
option) allows various print quality settings, tray selection, effects like
watermarks, booklet layout and so on. None of this is made available via the
Linux tool.
It gets worse: if you're using a non-KDE application, like Firefox or
Openoffice, you get even fewer options. Firefox's print dialog lets you set
colour or greyscale, set the margins and paper size, and that's it. OOWriter's
print dialog gives access to paper size, duplex printing, paper tray, scale,
print mode (draft, normal or quality) and resolution. I'm not sure why this
discrepancy is. Presumably the driver tells the application what features it
has, and the application decides what it knows how to deal with. Firefox doesn't
know much, OOWriter knows quite a bit more. Abiword knows something
different. None knows what a Windows application knows.
Fortunately the day is (almost) saved by KDE's print system. 'kprinter' is
integrated into all KDE applications and therefore gives a consistent feel to
printing as long as you stick with KDE tools. Sadly I don't. Still, kprinter
allows control of all the features listed above, plus paper source (i.e. which
tray), banners, pages per sheet, image controls such as gamma correction and
other driver settings. I'm not sure how much of this is being provided directly
by KDE, and how much KDE is using the printer driver for. It's a shame it
matters, but it does. I've still not found a way to get kprinter to take its
paper from the bottom printer tray; under windows I just click the option in MS
Word to say the page should be printed on letterhead paper (which is what I've
told the printer is in that tray) and it just happens. There's no such option
anywhere under Linux or KDE so it just doesn't happen. Given that kprinter lists
various trays (such as Upper Tray, Lower Tray, Photo Tray, Large Tray, etc.)
you'd think one of them would make the printer select from tray number 3, but it
doesn't seem to work like that. More frustration.
After a fashion I've got a working set up though. The KDE print system allows me
to select either the main tray or the individual sheet feeder, so I can put
letterhead paper through the slot one page at a time. I'd rather just choose the
right tray, like I can from Windows, but at least there is a working solution
under Linux. Not so if I want to use the printer's advanced features from
Firefox. In that case I have to do it from Windows. Sigh.
Software for Scanning
The hp-toolbox kit doesn't provide a scanner program. Instead it just runs the KDE
application 'kooka', which is a front end onto the SANE library. It'd be nice if
the HP software actually installed itself such that it just worked - it's only a
single line change to the SANE config file after all - but at least it works.
Actually it works rather well. kooka seems somewhat confused about whether it
should be a scanner or some form of image management tool, but you can use
something simpler like xscanimage. I'd like to see a KDE KPart for scanning so
any KDE application could do it.
Software for Fax
The hp-toolbox has a utility called hp-sendfax, which looks like a basic fax
sender dialog. I've not tried it. It looks, however, very much like the one HP
provide for Windows and that worked fine. I've no reason to believe this would
be different.
What you're supposed to do, I think, is use the Fax printer option that CUPS
presents you with. Anytime you open the printer dialog from an application, the
option of a printer called "HP 3390 Fax" is there. There's a similar one from
Windows, and when you select it and click OK a dialog pops up asking for a fax
number, etc. I tried this from Firefox under Linux but when I hit send nothing
happened. No dialogs, no errors, no change in printer status. Great. By chance I
spotted an error in the CUPS server's log window telling me to run hp-sendfax
first. Can't do that, since I don't have that software on the machine running as
the CUPS client, and it doesn't work if I run that software on the CUPS server
either. So I moved to the CUPS server, ran hp-sendfax, then tried printing to
the Fax device from there. Bizarrely, the hp-sendfax utility then told me I have
to run hp-sendfax first!
I've no idea what's going on here. I did actually make it work by running the
hp-sendfax utility from the right machine at the right moment. The window popped
up and I gave it a phone number which the machine dialed. So it is possible,
it's just hopelessly user unfriendly. So it's not beyond the realms of
possibility to make it work, but for the moment I'm working on the basis that if
I need to send a fax from an application, it'll go from the Windows machine.
Software for Copying
The final button in the hp-toolbox runs hp-makecopies, which is a front end
dialog to the photocopier. This allows you to change enlargement, quality and
contrast from the computer screen rather than the mess of buttons on the
machine's panel. I've only used it once, but I'm happy to report that this bit,
at least, works as expected.
Conclusion
So, would I recommend this machine for the Linux user? The answer is a reserved
yes. It's a good device and HP have provided Linux software that makes it
usable. My only reservation is that I can't find a way to make any Linux
application take its paper from the second tray. As long as that's not critical
for your usage - it's not for mine - it works, especially if you're OK using the
KDE print system.. There's an almighty 'but' though...
But... the state of the Linux software that does printing and faxing is
dreadful. Installation via CUPS and YaST is a pig. Application print support is
a total mess: Firefox's print abilities are different from OOWriter, which are
different from Abiword, which are different from KDE applications. You never
quite know how many options you're going to get access to. Actually using the
thing is a horrible experience.
I'd recommend the machine to the Linux user who wants a multi-function device,
because it's a good device and it works, after a fashion. But I wouldn't
recommend anyone with high demands actually uses Linux for the type of work that
this machine excells at. The Linux desktop environment just isn't up to
it. Coming from a Linux fan like me, that's a big and painful admission.
